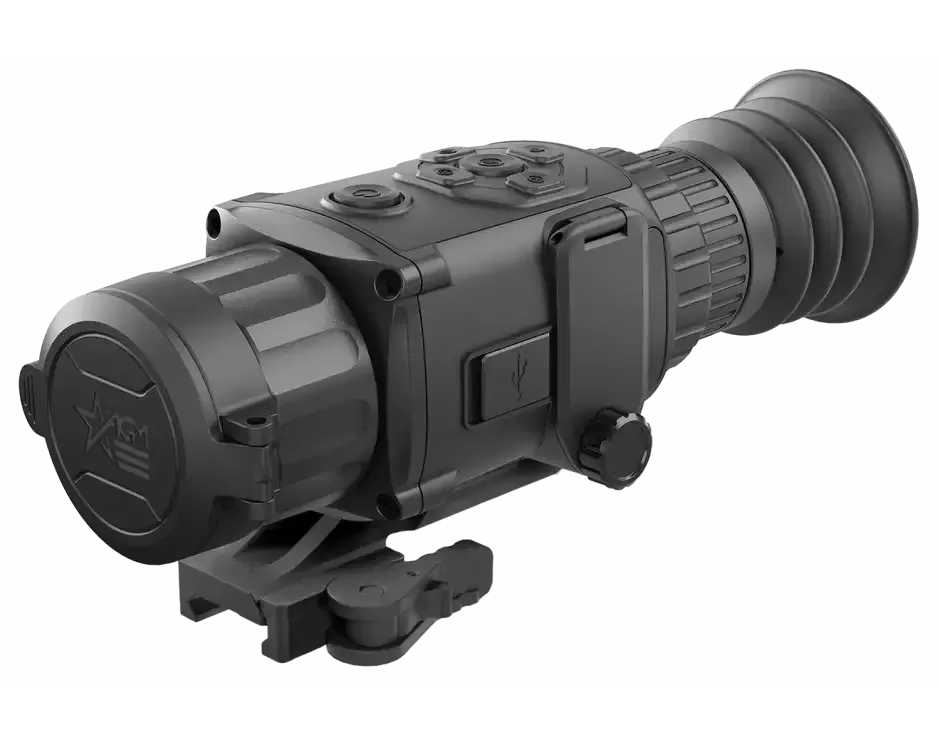

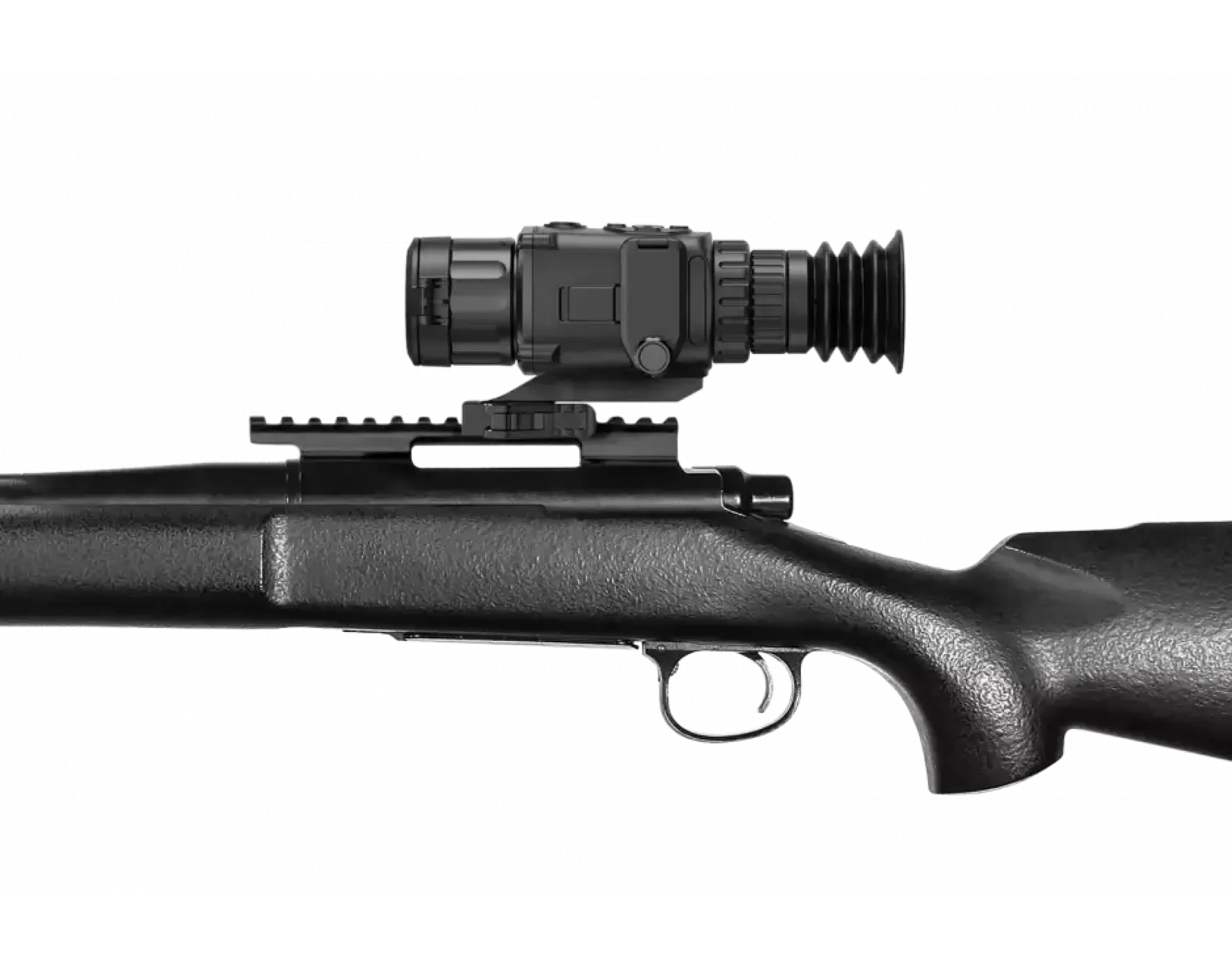

Thermal image riflescope has 256×192, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-256 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Warning: California's Proposition 65
- 256×192 thermal resolution, 12μm, high sensitivity detector
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 1024×768 resolution 0.39-inch OLED display
- 8x digital zoom
- Video recording and snapshot, built-in EMMC (16 GB)
- Supports distance measurement
- Adjustable color palettes
- Wi-Fi data transmission
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- 3-Year warranty
Palettes: Black Hot, White Hot, Red Hot, Fusion
Reticle: 5 types, 3 colors, on/off
Drop Test Height: 1.5m (4.9 feet)
Boresight Adjustment: Digital Controlled
Boresight Increment: 0.17 mil / 0.58 MOA
Distance Measurement: Yes (Stadiametric Rangefinder)
Scene Mode: Jungle, Recognition
Picture In Picture Mode (PIP): Yes
Hotspot: Yes
Video Recording: Yes
Defective Pixels Correction (DPC): Yes
Uniformity Correction: Auto, Manual, External Correction
Digital Magnification: 3.5x - 28x
Detector Type: 12μm, Uncooled, 25 Hz
Standby Mode: Yes
Resolution: 256 × 192
Detection Range: 1250m/yd
Snapshot: Yes
Lens System: 25 mm; F/1.0
Field of view (H × X): 7.0° × 5.3°
Digital Zoom: 1×, 2×, 4×, 8×
Eye Relief: 45 mm
Display: 0.39-inch, OLED, 1024×768, 50 Hz
Storage: Built-in EMMC (16 GB)
Battery Type: Two CR123 (3V) Lithium
CVBS Output: Yes (via USB)
External Power Supply: 5 VDC/2 A, USB Type-C interface
Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)
Degree Of Protection: IP67
Weight: 568 g ( 1.16 lb)
Overall Dimensions: 187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Package Includes: Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
Magnification: 3.5X
