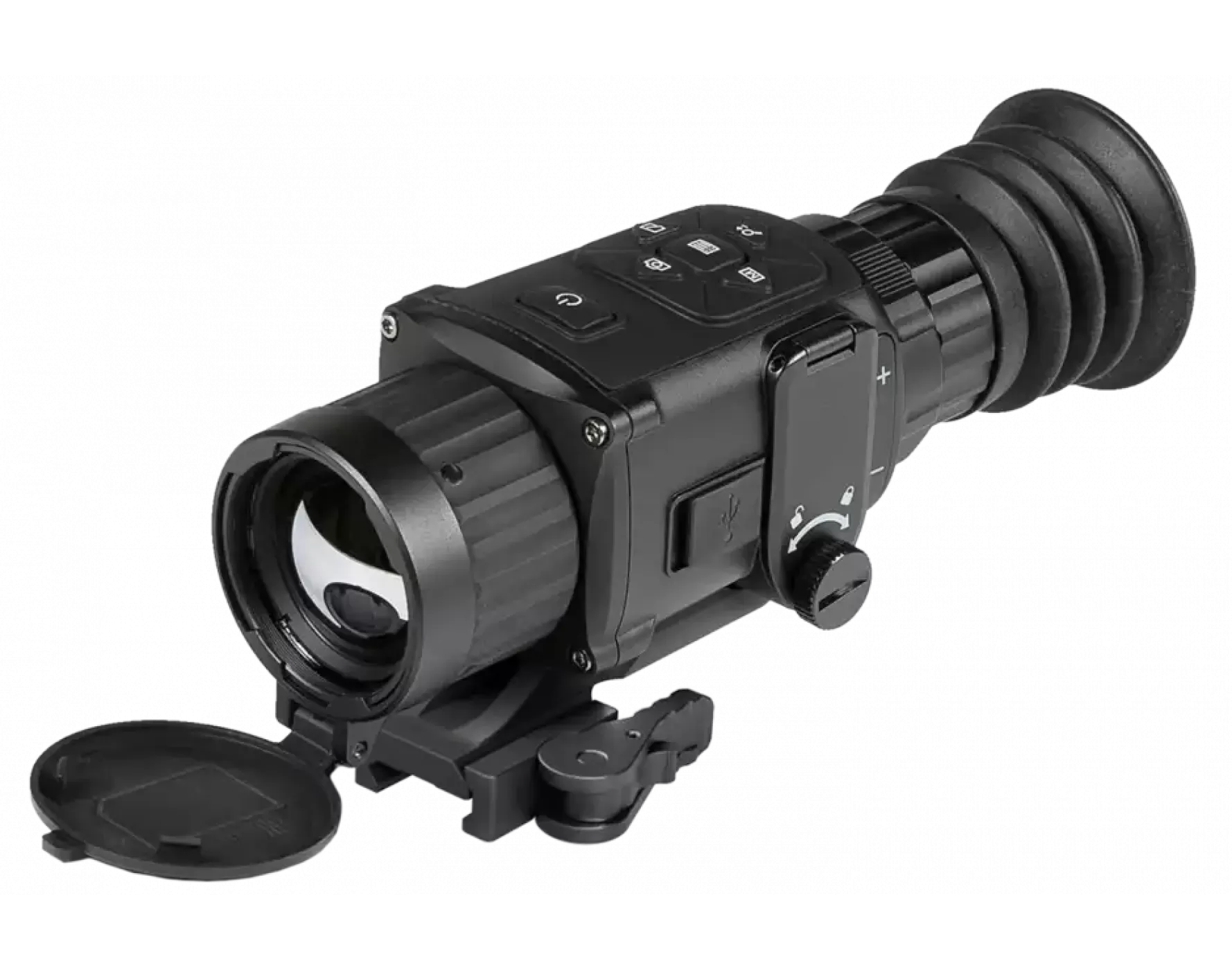

AGM RATTLER TS35-384
×

Description
DESCRIPTION:

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.
Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Warning: California's Proposition 65

  • 384 × 288 thermal resolution, high sensitivity detector
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024 × 768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 5-Year warranty
Characteristics

Detector type: 17μm, Uncooled, 50Hz

Refresh rate: Sensor 50 Hz / OLED 50 Hz

Resolution: 384x288

FOV: 10.0° x 8.0°

Package Includes
  • Mount
  • USB Cable
  • Lens Tissue
  • User Manual
  • Carrying Bag
  • CR 123 Batteries
SPECIFICATIONS:

Shock and Vibration: 750 g/ms

Digital Magnification:  2x - 16x

Detector Type: 17μm, Uncooled, 50Hz

Standby Mode: Yes

Resolution: 384x288

Detection Range: 1750m/yd

Snapshot: Yes

Lens system: 35 mm; F/1.0

Field of view (H × X): 10.0° x 8.0°

Digital Zoom: 2x, 4x, 8x, PIP

Eye Relief: 45 mm

Imaging Palettes: Jungle, Recognition

Display: 0.39-inch, OLED, 1024 × 768

Storage: Built-in EMMC (16 GB)

Record Video: Yes

Battery Type: Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi: Yes

Battery Life (Operating): Up to 4.5 hr

External Power Supply: 5V USB

Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)

Degree of Protection: IP67

Weight: 511 g (1.13 lb)

Overall Dimensions: 226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in)

Magnification: 2x

2x
